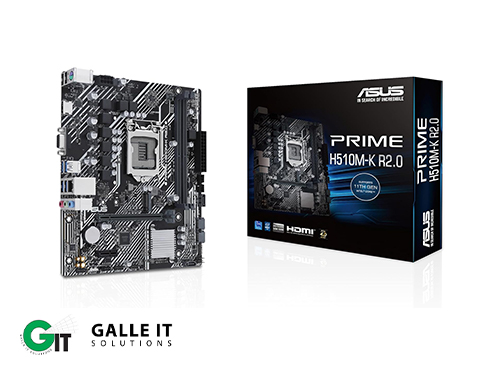

Asus H510M-K R2.0 Motherboard
Asus H510M-K R2.0 Motherboard
Price: LKR 33500
In stock
- Motherboard
- ASUS PRIME H510M-K R2.0
- CPU Socket
- Intel LGA 1200
- Chipset
- Intel H470
- Form Factor
- Micro-ATX (mATX)
- Supported CPUs
- 10th Gen Intel Core (Comet Lake), 11th Gen Intel Core (Rocket Lake), Pentium Gold, Celeron
- Memory Type
- DDR4
- RAM Slots
- 2 DIMM
- Maximum Memory
- 64GB
- Memory Speed
- Up to DDR4 3200 MHz (OC, 11th Gen CPU)
- Dual Channel Support
- Yes
- PCIe Slot
- 1 × PCIe 4.0/3.0 x16, 1 × PCIe 3.0 x1
- Storage
- 1 × M.2 slot (PCIe 3.0 x4 / SATA), 4 × SATA 6Gb/s
- Graphics Outputs
- 1 × HDMI, 1 × VGA
- LAN
- Realtek 1Gb Ethernet
- Audio
- Realtek 7.1 HD Audio (ALC887/compatible codec)
- USB Ports (Rear)
- 4 × USB 3.2 Gen 1, 2 × USB 2.0
- Internal USB Headers
- 2 × USB 2.0, 1 × USB 3.2 Gen 1
- Audio Channels
- 7.1 Surround Sound support
- BIOS Type
- UEFI AMI BIOS
- TPM Support
- Firmware TPM (Intel PTT)
- RGB Header
- Yes (1 × RGB header)
- Power Connector
- 24-pin ATX + 8-pin CPU
- Cooling Headers
- 1 × CPU fan, 1 × chassis fan
- Special Features
- ASUS 5X Protection III, SafeSlot Core, DIGI+ VRM, Fan Xpert
